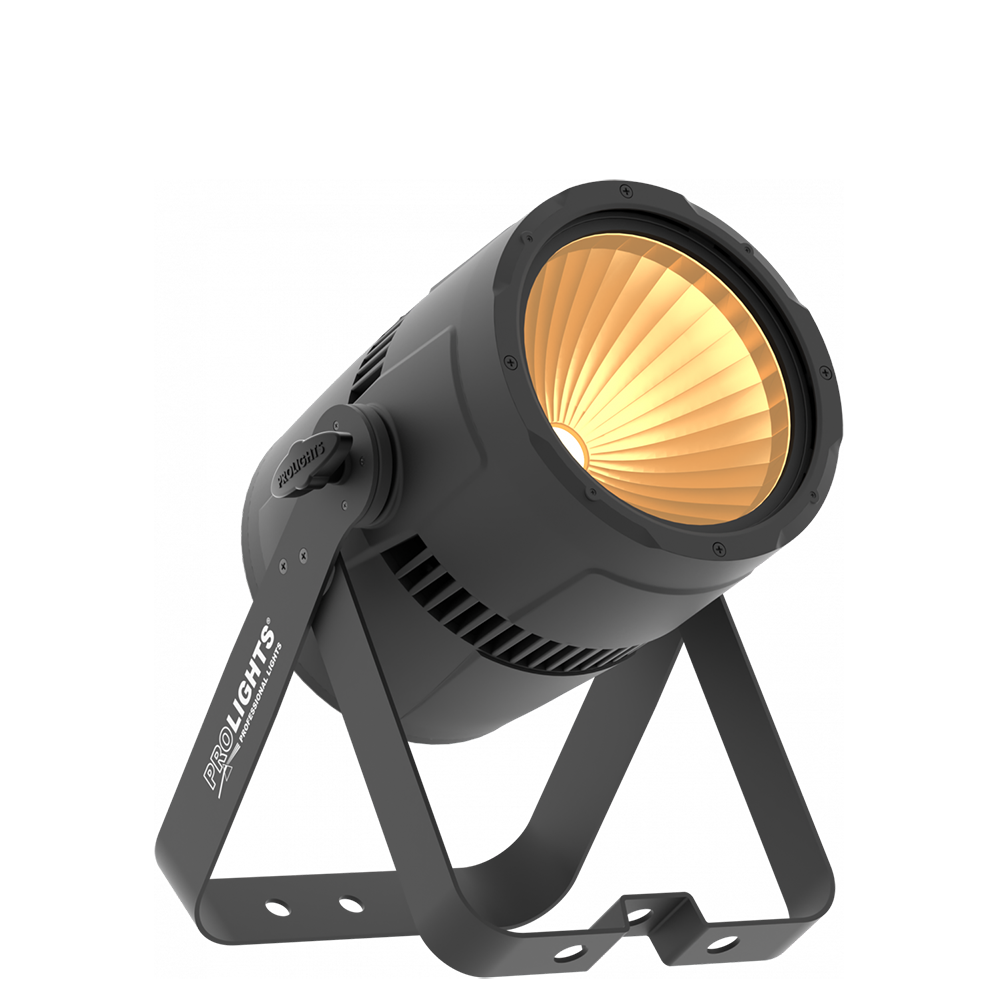

Prolights StudioCob TU

100W Tungsten White COB PAR with parabolic reflector

StudioCob TU is a powerful and incredibly versatile LED PAR. Fusing the old and the new, it pairs a 3.100 K COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenised output, single shadow and flexible lens options.

Thương hiệu	ProLights

Thương hiệu

ProLights

LIGHT SOURCE

Source: 100W high-power white LED
CCT: 3.100
Luminous flux: 6’697lm
Lux: (60°) 666lx @3 m
Lux: (30°) 1’540lx @3 m
CRI: 92
R9: 57
TLCI: 88
TM30 Rf: 90
TM30 Rg: 101
Other:
Source life expectancy: > 30.000 h

OPTICS

Beam angle: 65°
Field angle: 96°
Lens type: parabolic reflector in combination with HD fresnel lens
Additional optics: 30° (inc) – 15° (opt)

DYNAMIC EFFECTS

Static mode: selection of static colour
Manual mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment

BODY

Body: sturdy die-cast aluminium body
Body colour: black, mirror and white finishing available

CONTROL

Protocols: DMX512
DMX channels: 1 / 2 / 5channel
Display: Graphic User Interface
Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 – 28 Hz, electronic
Operating temperature: -10° ~ +45°
LED Control: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

Mains power supply: 100-240V – 50/60Hz
Max power consumption: 107W
Output (at 230V): 12 units on a single power line
Power factor: 0,94

PHYSICAL

IP rating: 20
Cooling: active, silent operation
Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
Signal connection: XLR 3p + 5p IN/OUT connectors
Power connection: Neutrik powerCON IN/OUT connectors
Dimensions (WxHxD): 262x190x371mm / 10.31”x7.48”x14.61”
Weight: 4,5kg / 9.92lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM

BOX CONTENT

1 x STUDIOCOBTU
1 x 1,5 meters power cable (BARE END – NEUTRIK POWERCON)
User Manual

StudioCob TU
