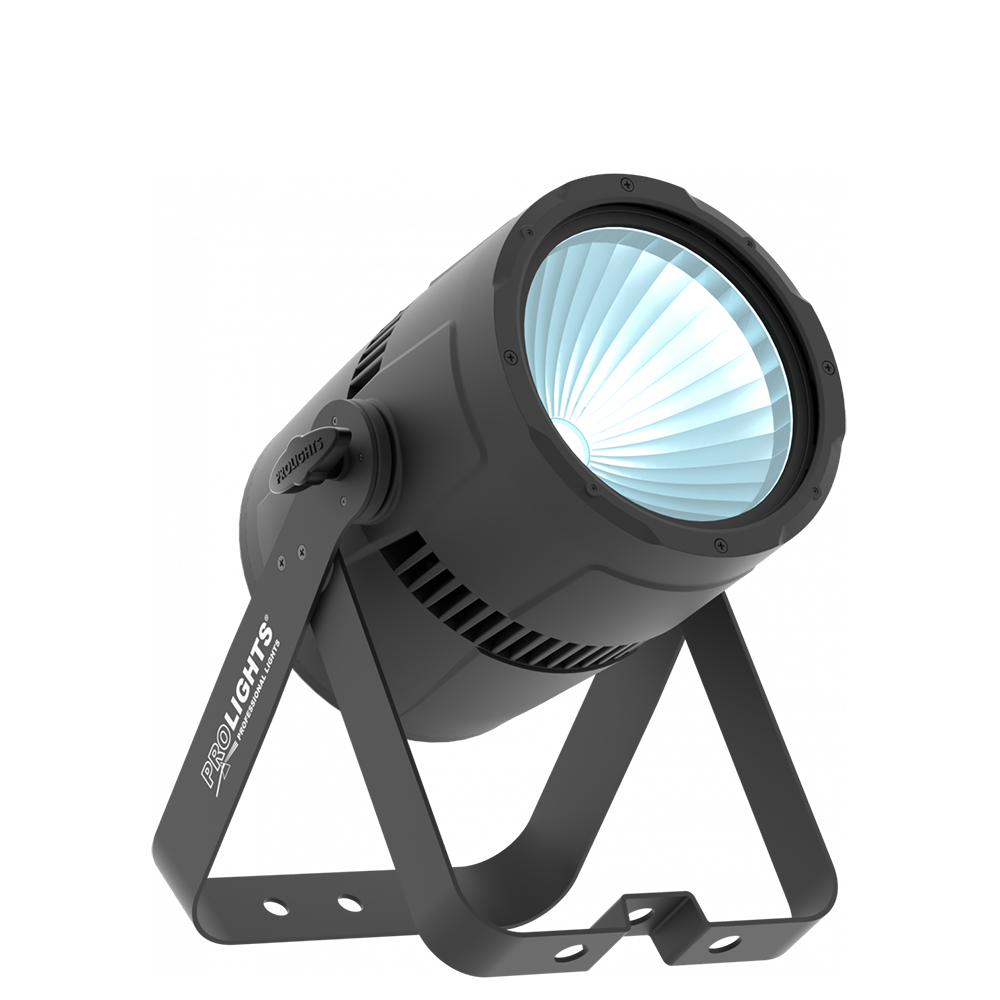

Prolights StudioCob DY

100W Daylight White COB PAR with a parabolic reflector

StudioCob DY is a powerful and incredibly versatile LED PAR. Fusing the old and the new, it pairs a 5.000 K COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenised output, single shadow and flexible lens options.

Thương hiệu	ProLights

So sánh

Thêm vào yêu thích

Mô tả

LIGHT SOURCE

Source: 100W high-power white LED
CCT: 5.000
Luminous flux: 8’139lm
Lux: (60°) 790lx @3 m
Lux: (30°) 1’698lx @3 m
CRI: 83
R9: 74
TLCI: 70
TM30 Rf: 82
TM30 Rg: 94
Other:
Source life expectancy: > 30.000 h

OPTICS

Beam angle: 66°
Field angle: 98°
Lens type: parabolic reflector in combination with HD fresnel lens
Additional optics: 30° (inc) – 15° (opt)

DYNAMIC EFFECTS

Static mode: selection of static colour
Manual mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment

BODY

Body: sturdy die-cast aluminium body
Body colour: black, mirror and white finishing available

CONTROL

Protocols: DMX512
DMX channels: 1 / 2 / 5channel
Display: Graphic User Interface
Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 – 28 Hz, electronic
Operating temperature: -10° ~ +45°
LED Control: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

Mains power supply: 100-240V – 50/60Hz
Max power consumption: 109W
Max power consumption (at 120V): 109W
Output (at 230V): 12 units on a single power line
Power factor: 0,94

PHYSICAL

IP rating: 20
Cooling: active, silent operation
Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
Signal connection: XLR 3p + 5p IN/OUT connectors
Power connection: Neutrik powerCON IN/OUT connectors
Dimensions (WxHxD): 262x190x371mm / 10.31”x7.48”x14.61”
Weight: 4,5kg / 9.92lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM

BOX CONTENT

1 x STUDIOCOBDY
1 x 1,5 meters power cable (BARE END – NEUTRIK POWERCON)
User Manual

StudioCob DY

Đánh giá (0)

Đánh giá

Chưa có đánh giá nào.

Hãy là người đầu tiên nhận xét “Prolights StudioCob DY”

Vận chuyển & giao hàng

Sản phẩm tương tự

So sánh

Prolights LumiPar 12UQPro

indoor fixtures

12x8W RGBW/FC wash light super-slim PAR LED Lumipar 12UQPro is a super-slim par LED designed for professional use to be a powerful wash light and perform an outstanding chromatic capacity through the new optical design and light source based on 4 colours mixing. Lumipar 12UQPro is compatible with the infrared remote controller for intuitive and interactive use without need any external DMX units and can be also controlled wireless through the optional USB WIFI transceiver in combination with WIFIBOX and the SmartColor app.

Thêm vào yêu thích

Đọc tiếp

Xem nhanh

So sánh

Prolights LumiPix 16H

indoor fixtures

16x12 W high power LED pixel batten with RGBWA + UV mixing LumiPix 16H is a 100 cm linear LED batten. Designed for professional use utilising an innovative optical system combined with a new light source that performs: 6 primary colours - RGBWAP full colour - granting unprecedented chromatic performance. The super-slim design combined with its extreme colour precision and light output, make LumiPix 16H a flexible and versatile solution for every type of application or for use in venues, as the architectural, cyclorama, wall-washer, pixel effect or blinder.

Thêm vào yêu thích

Đọc tiếp

Xem nhanh

So sánh

Prolights LumiPix 8H

indoor fixtures

8x12W high power LED pixel batten with RGBWA + UV mixing Lumipix 8H is a linear 50 cm LED batten designed for professional use, employing an innovative optical system combined with a new light source performing 6 primary colour mixing, RGBWAP full colour, granting unprecedented chromatic performance. The super-slim design combined with the extreme colour precision and light output make Lumipix 8H a flexible and versatile solution for every kind of application or within venues as their architectural, cyclorama, wall-washer, pixel effect or blinder.

Thêm vào yêu thích

Đọc tiếp

Xem nhanh

So sánh

Prolights Mini VersaPar

indoor fixtures

7x10W RGBW compact zoom PAR Mini VersaPar is a compact indoor LED zoom PAR designed for rental companies. The multi-purpose concept combining high brightness, wide zoom range and advanced colour mixing truly makes this a unique fixture. Mini VersaPar is equipped with 10° - 40° unrivalled zoom range, high efficiency, perfect chromatic uniformity, HD dimming technology and totally silent operation.

Thêm vào yêu thích

Đọc tiếp

Xem nhanh

So sánh

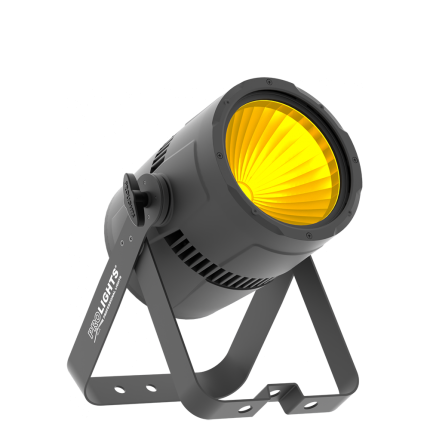

Prolights StudioCob FC

indoor fixtures

150W full colour COB PAR with parabolic reflector StudioCob FC is a powerful, incredibly versatile and full colour LED PAR. Fusing the old and the new, it pairs a full colour COB LED source with a traditional parabolic reflector to deliver a proper Par replacement with a homogenised output, single shadow and flexible lens options.

Thêm vào yêu thích

Đọc tiếp

Xem nhanh

So sánh

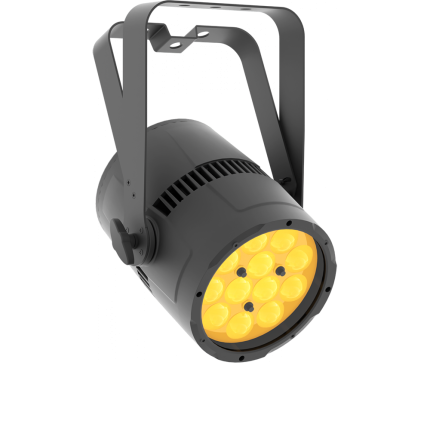

Prolights VersaPar
