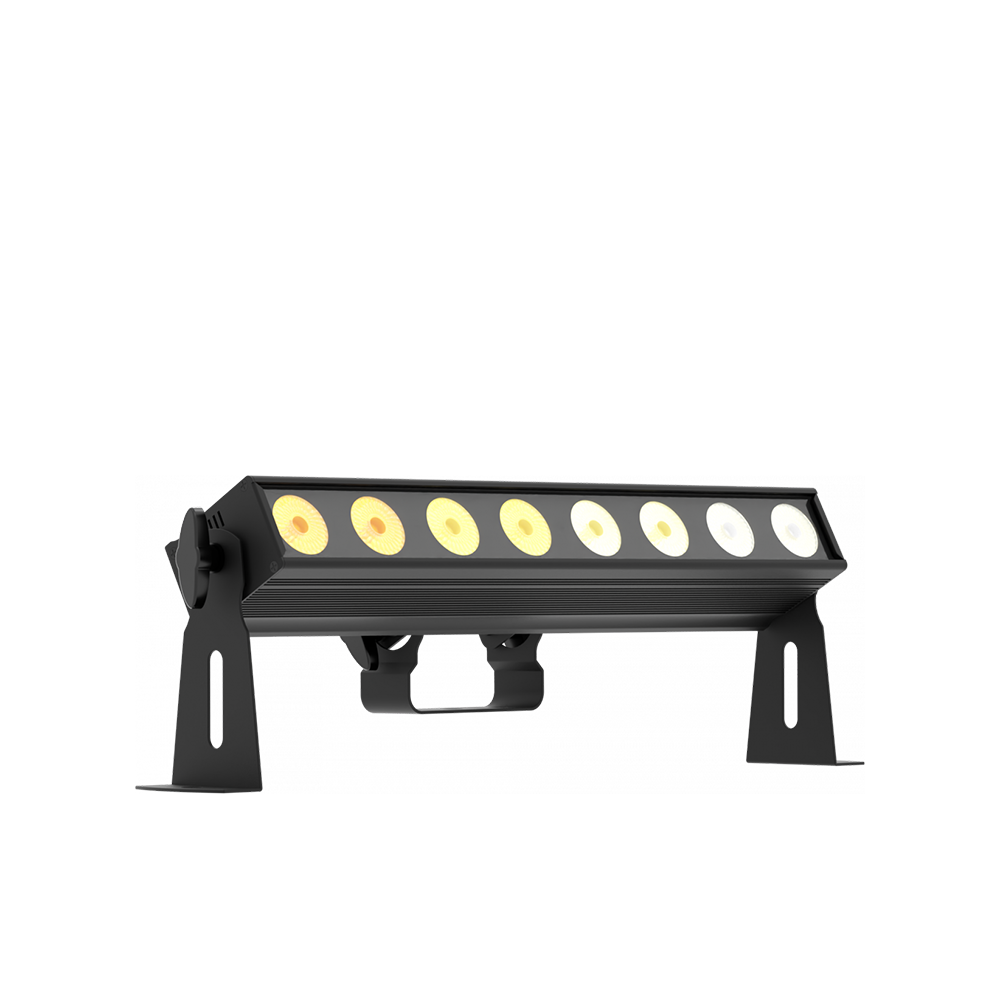

Prolights LumiPix 8H

8x12W high power LED pixel batten with RGBWA + UV mixing

Lumipix 8H is a linear 50 cm LED batten designed for professional use, employing an innovative optical system combined with a new light source performing 6 primary colour mixing, RGBWAP full colour, granting unprecedented chromatic performance. The super-slim design combined with the extreme colour precision and light output make Lumipix 8H a flexible and versatile solution for every kind of application or within venues as their architectural, cyclorama, wall-washer, pixel effect or blinder.

Thương hiệu	ProLights

Thương hiệu

ProLights

LIGHT SOURCE

Source: 8x12W RGBWAP LEDs
Luminous flux: 2’065lm
Lux: (15°) 1’214lx @3 m full
Source life expectancy: > 50.000 h

OPTICS

Beam angle: 22°
Field angle: 36°
Lens diameter: 42mm / 1.65”
Additional optics: 25° and 45° (optional)

COLOUR SYSTEM

Colour mixing: RGBWAP / FC
White presets: 3.200 K -10.000K
Colour wheel: virtual colour wheel with macros
Macros: several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

Static mode: selection of static colour
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment

BODY

Body: sturdy die-cast aluminium body
Body colour: black

CONTROL

Protocols: DMX512
DMX channels: 3 / 6 / 8 / 12 / 48 / 53channel
Pixel control: pixel2pixel control
Display: LCD display
Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 – 25 Hz, electronic
Operating temperature: -10° ~ +45°
LED Control: flicker free operation

ELECTRICAL

Mains power supply: 100-240V – 50/60Hz
Max power consumption: 85W
Max power consumption (at 120V): 87W
Output (at 230V): 16 units on a single power line

PHYSICAL

IP rating: 33
Cooling: passive cooling and fan-free
Suspension and fixing: bracket for hanging and positioning
Signal connection: XLR 3p + 5p IN/OUT connectors
Power connection: Neutrik powerCON IN/OUT connectors
Dimensions (WxHxD): 582x80x183mm / 22.91”x3.15”x7.2”
Weight: 3,3kg / 7.28lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM

BOX CONTENT

1 x LUMIPIX8H
1 x 1,5 meters power cable (BARE END – NEUTRIK POWERCON)
2 x side floor brackets
User Manual
