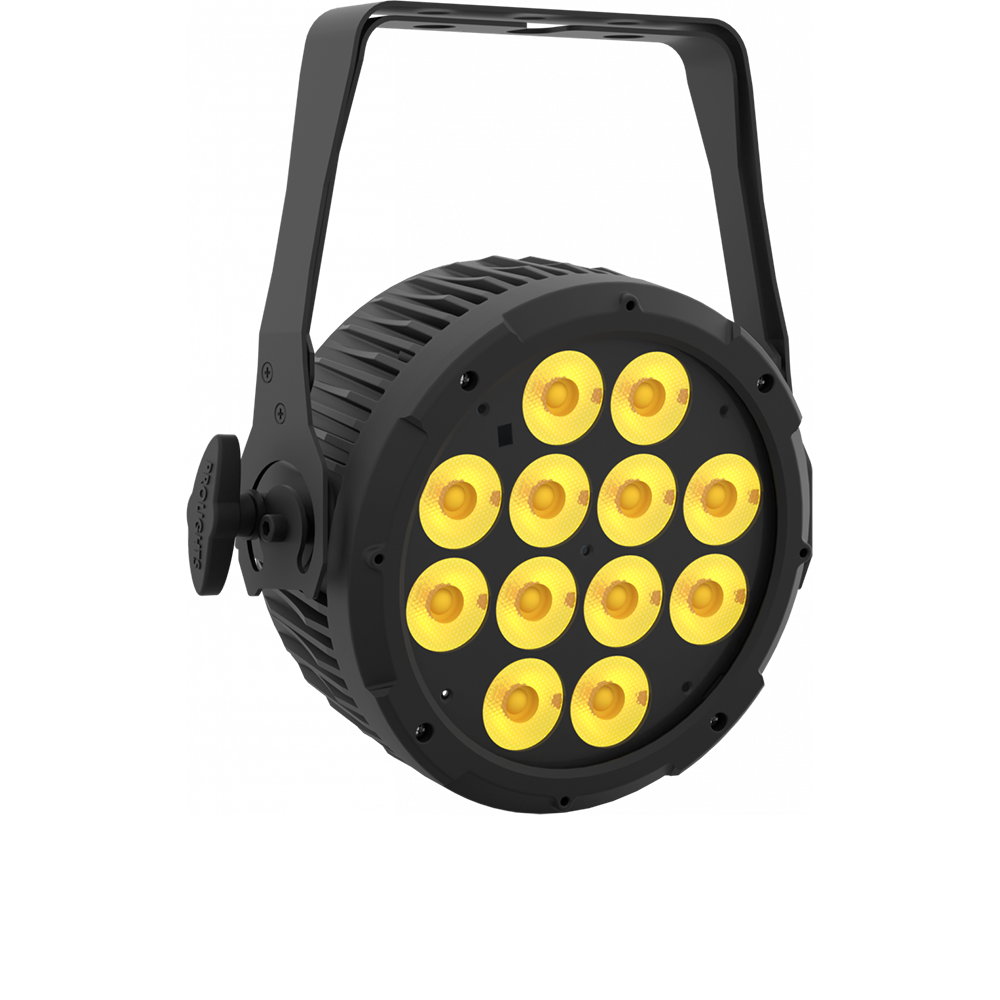

Prolights LumiPar 12UQPro

12x8W RGBW/FC wash light super-slim PAR LED

Lumipar 12UQPro is a super-slim par LED designed for professional use to be a powerful wash light and perform an outstanding chromatic capacity through the new optical design and light source based on 4 colours mixing. Lumipar 12UQPro is compatible with the infrared remote controller for intuitive and interactive use without need any external DMX units and can be also controlled wireless through the optional USB WIFI transceiver in combination with WIFIBOX and the SmartColor app.

Thương hiệu	ProLights

Thương hiệu

ProLights

LIGHT SOURCE

Source: 12x8W RGBW LEDs
CCT: W: 6.600
Luminous flux: 3’035,7lm
Lux: 3’113lx @3 m full
Source life expectancy: > 50.000 h

OPTICS

Beam angle: 16°
Field angle: 35°
Lens diameter: 38mm / 1.5”
Additional optics: 25° (inc) – 45° (op)

COLOUR SYSTEM

Colour mixing: RGBW / FC
Colour wheel: virtual colour wheel with macros

DYNAMIC EFFECTS

Static mode: selection of static colour
Manual mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment

BODY

Body: sturdy die-cast aluminium body
Body colour: black

CONTROL

Protocols: DMX512
DMX channels: 4 / 9channel
Wireless Control: optional, proprietary protocol compatible with WIFIBOX, WDBOX
Display: LED display user interface
Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
IR: infrared sensor controlled by remote
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 – 28 Hz, electronic
Operating temperature: -10° ~ +45°
LED Control: flicker free operation

ELECTRICAL

Mains power supply: 100-240V – 50/60Hz
Max power consumption: 77W
Max power consumption (at 120V): 78W
Output (at 230V): 17 units on a single power line
Output (at 120V): 9 units on a single power line

PHYSICAL

IP rating: 44
IK rating: 07
Cooling: passive cooling and fan-free
Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
Data: USB port for USB WIFI transmitter (optional)
Signal connection: variants available
Power connection: variants available
Dimensions (WxHxD): 253x200x237mm / 9.96”x7.87”x9.33”
Weight: 3,3kg / 7.28lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM
